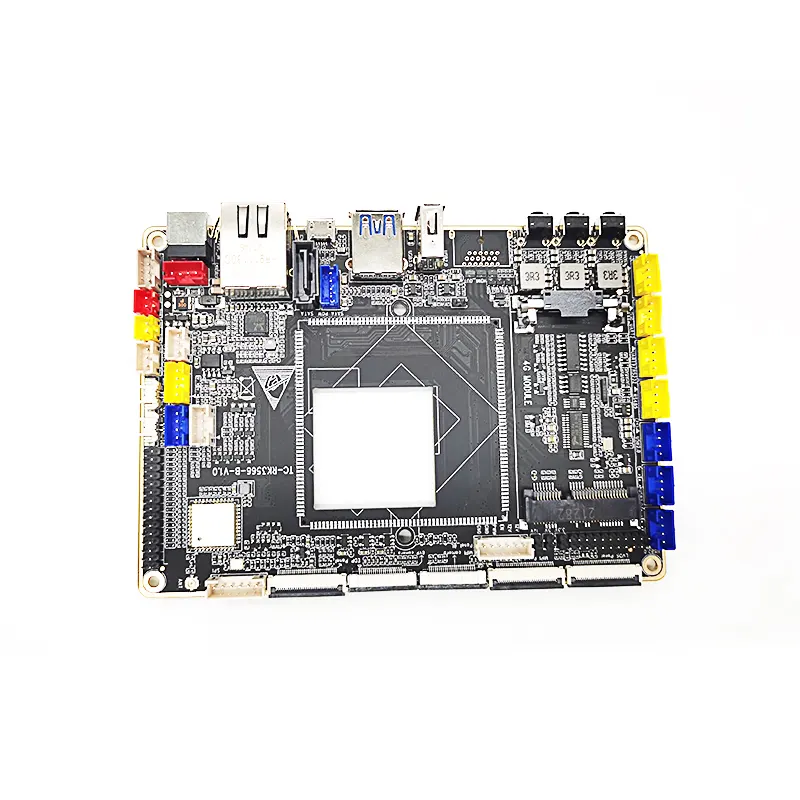

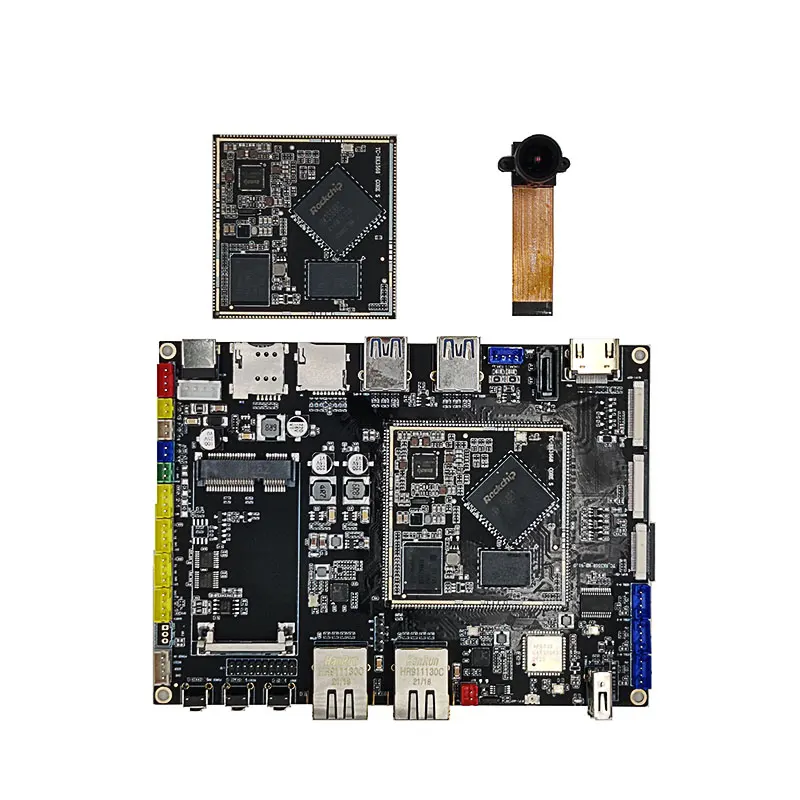

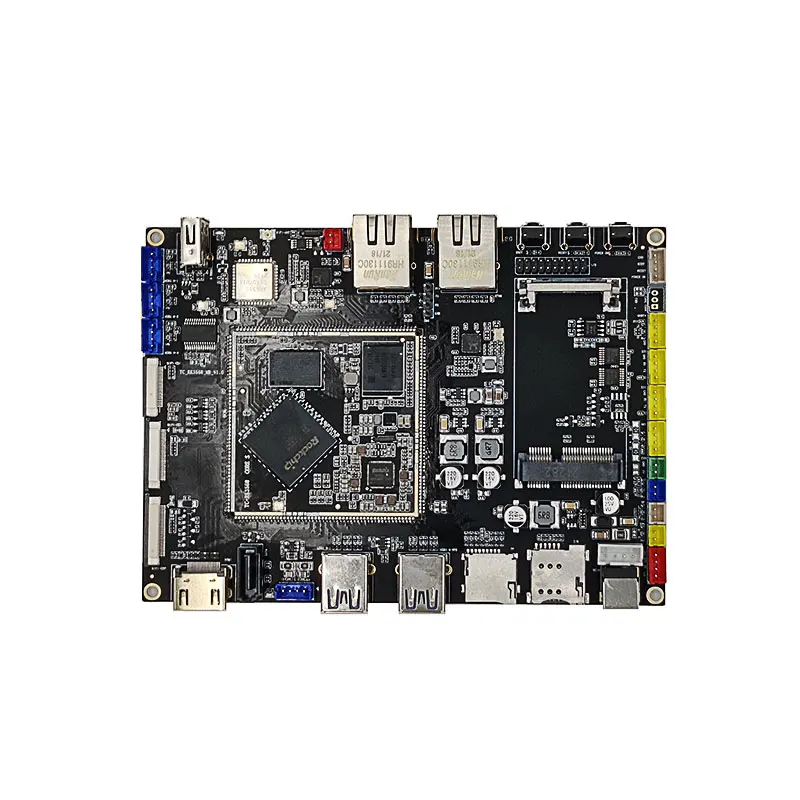

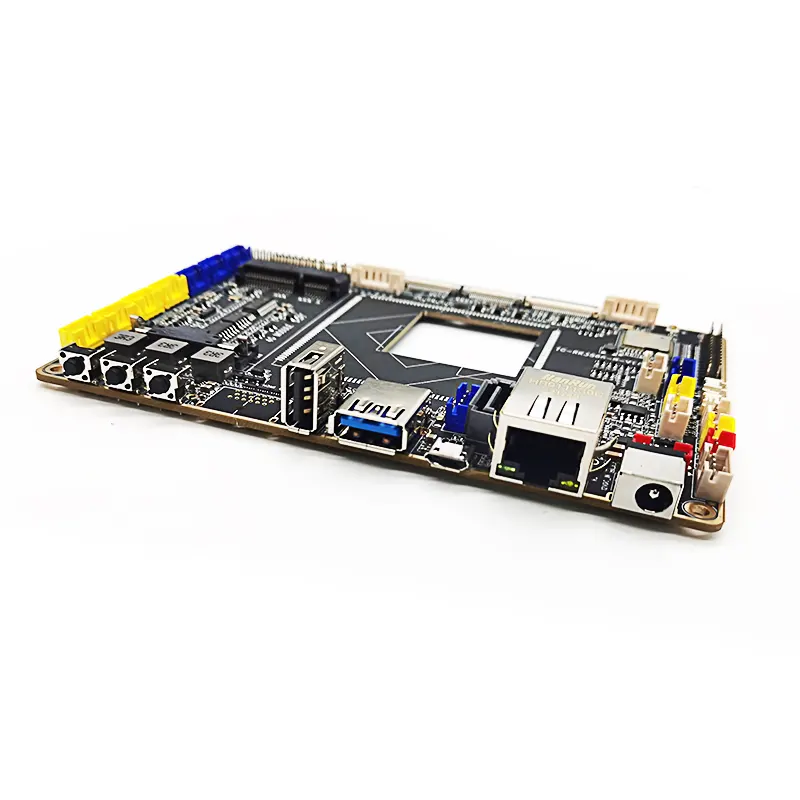

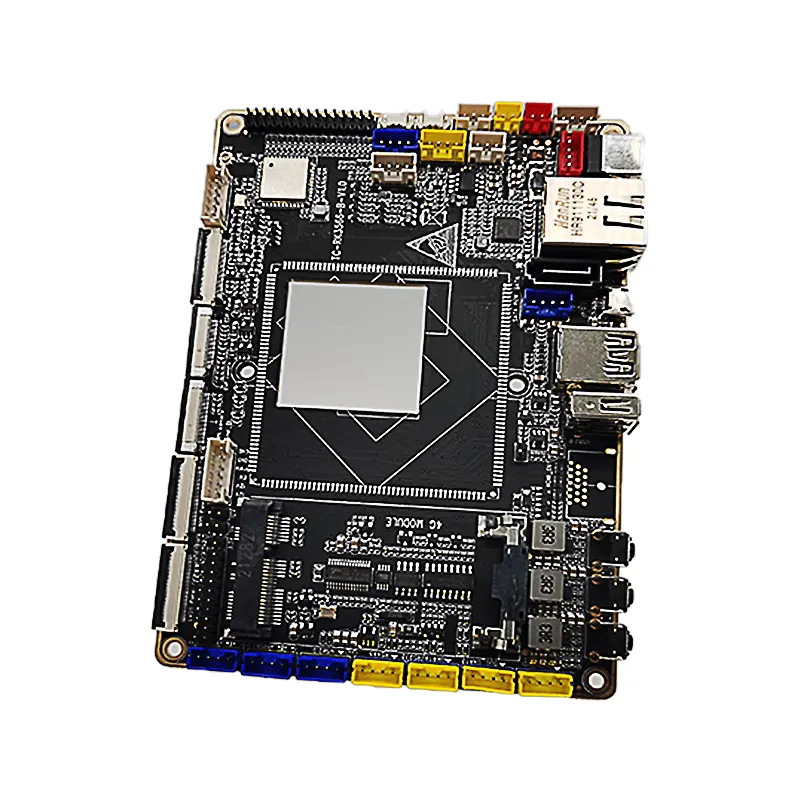

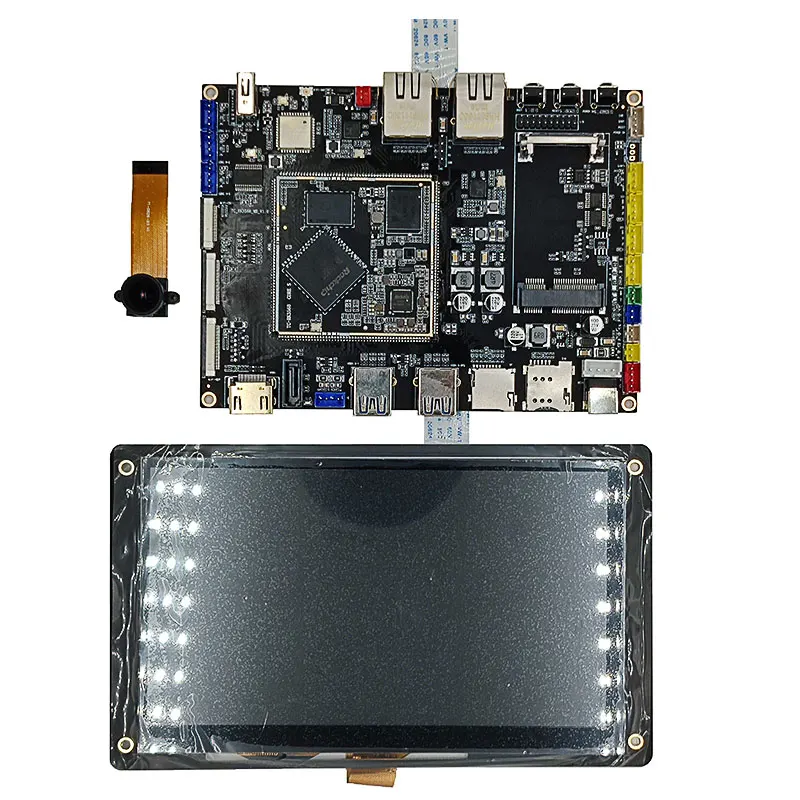

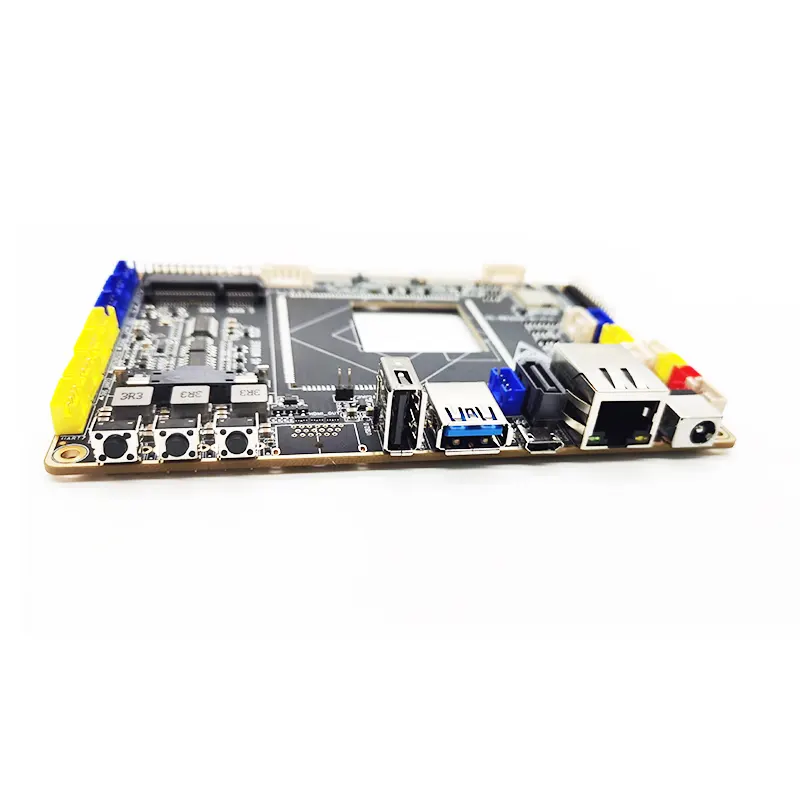

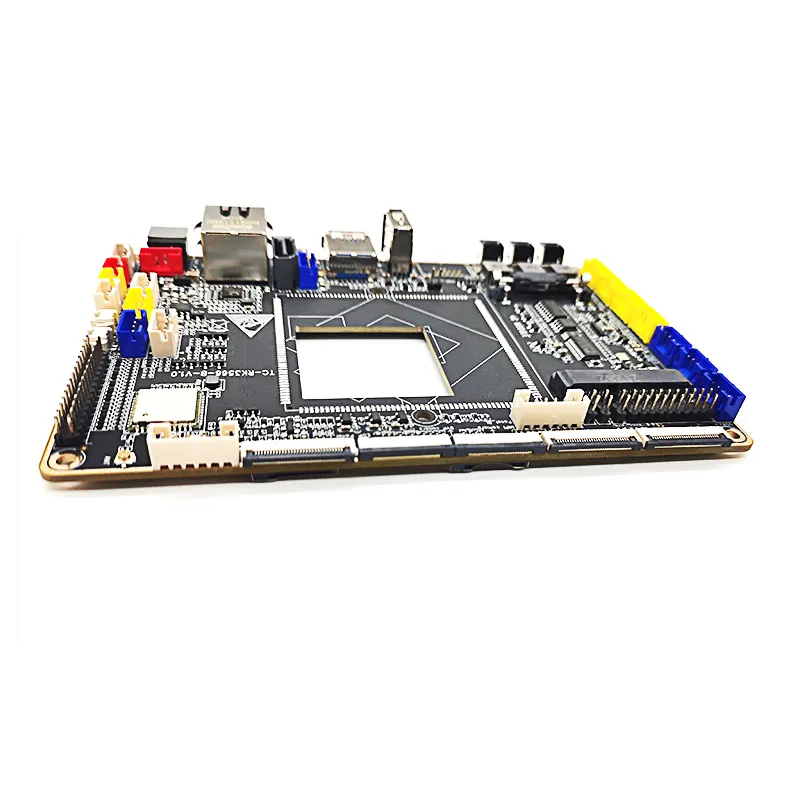

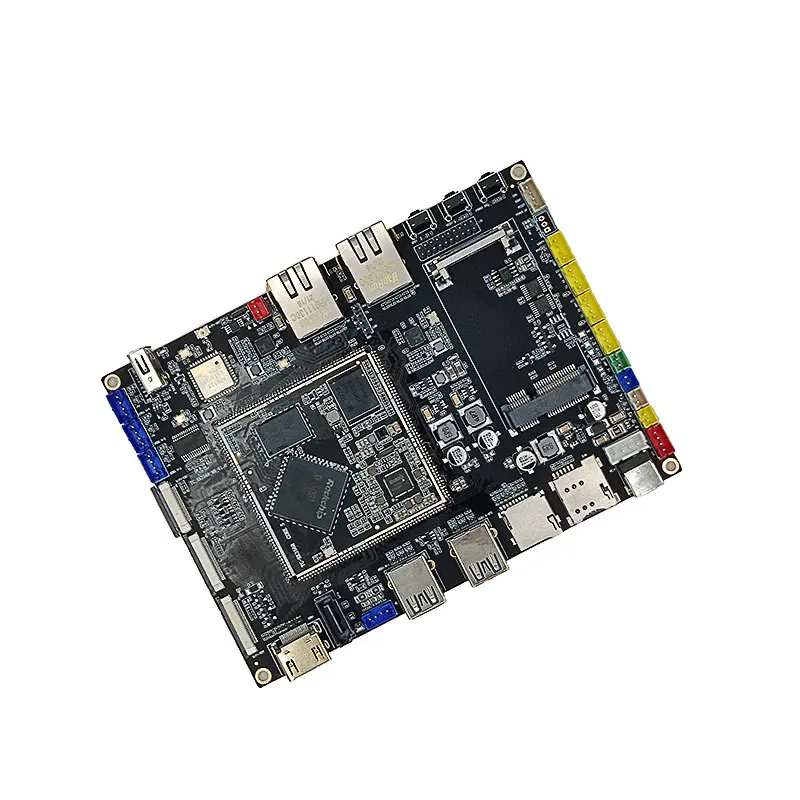

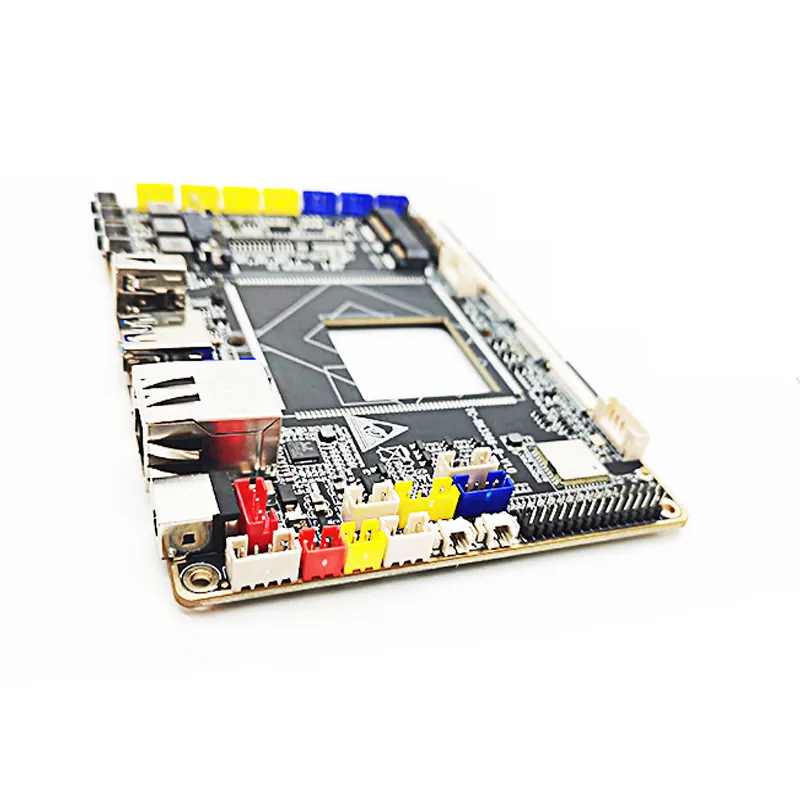

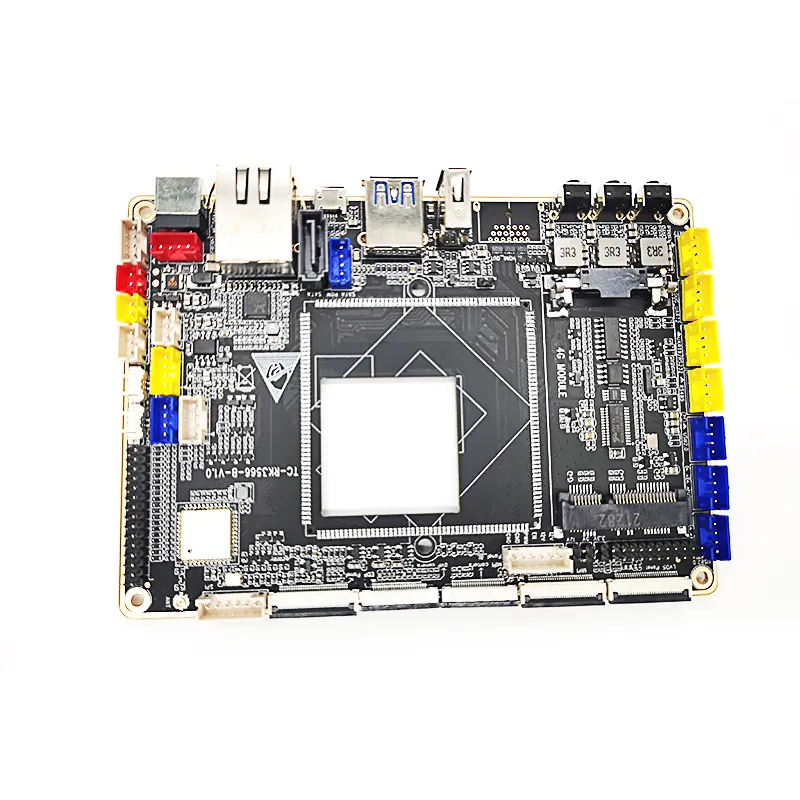

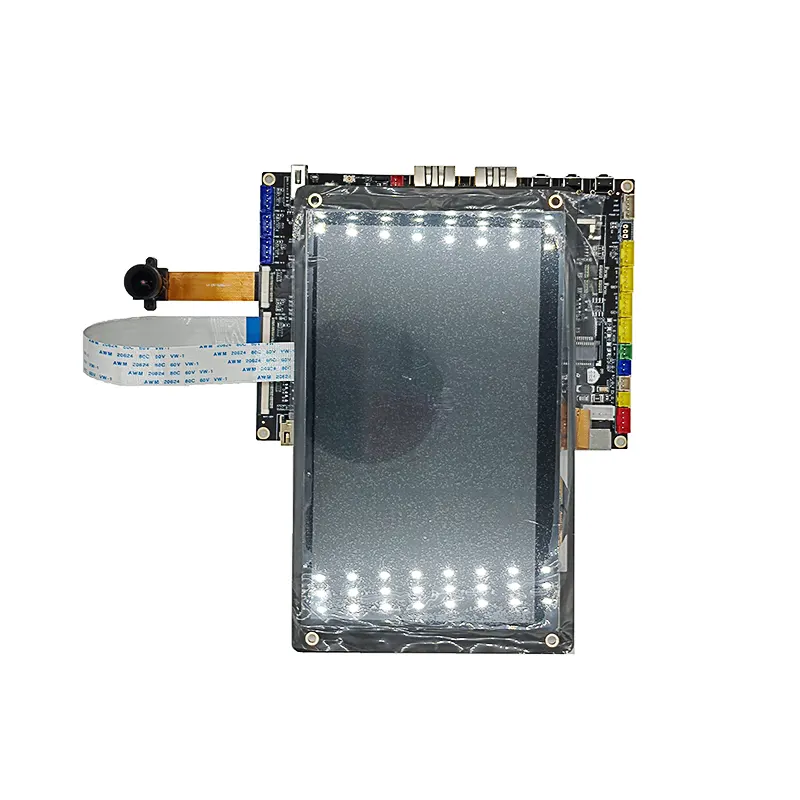

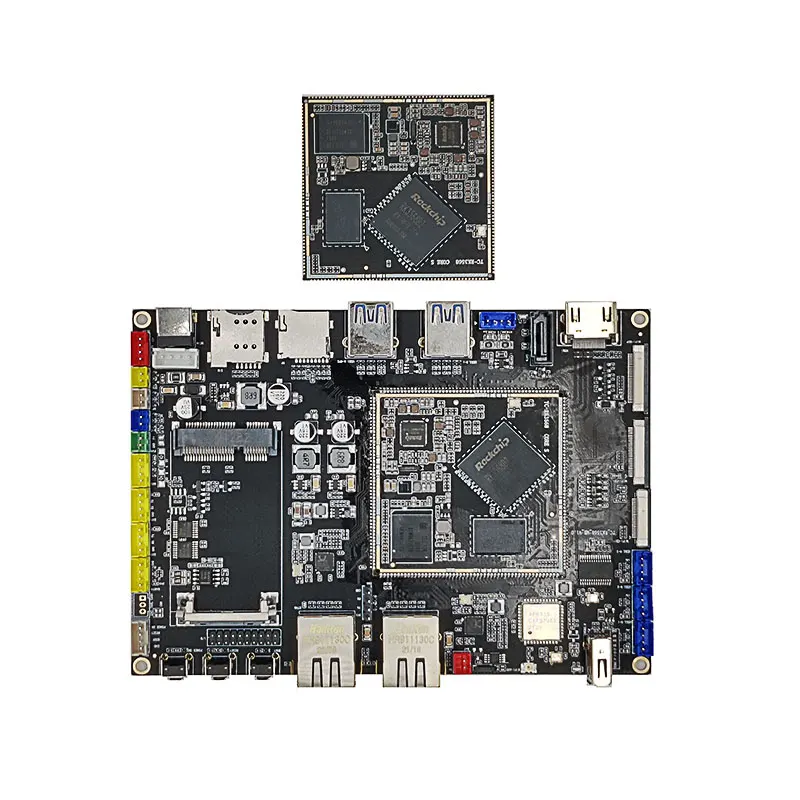

RK3568 Arendusamet

Versioon

Kuupäev

Autor

Kirjeldus

Rev.01

2022-08-04

Läbivaatamine

PIN-kood

Südamiku tihvti määratlus

Vaikefunktsioon

Funktsiooni vaikekirjeldus

IO võimsus

Padja tüüp IO pull

1

VCC3V3_SYS

3,3 V süsteemi toiteallikas

Sisendpinge 3,3V

-

2

VCC3V3_SYS

3,3 V süsteemi toiteallikas

Sisendpinge 3,3V

-

3

GND

GND

GND

-

4

GND

GND

GND

-

5

SDMMC0_DET_L

SDMMC0_DET/SATA_CP_DET/PCIE30X1_CLKREQn_M0/GPIO0_A4_u

SDMMC0 tuvastab sisendi

3,3 V

I/O UP

6

SDMMC0_D3

SDMMC0_D3/ARMJTAG_TMS/UART5_RTSn_M0/GPIO2_A0_u

SDMMC0 andmeport

3,3 V

I/O UP

7

SDMMC0_D2

SDMMC0_D2/ARMJTAG_TCK/UART5_CTSn_M0/GPIO1_D7_u

SDMMC0 andmeport

3,3 V

I/O UP

8

SDMMC0_D1

SDMMC0_D1/UART2_RX_M1/UART6_RX_M1/PWM9_M1/GPIO1_D6_u

SDMMC0 andmeport

3,3 V

I/O UP

9

SDMMC0_D0

SDMMC0_D0/UART2_TX_M1/UART6_TX_M1/PWM8_M1/GPIO1_D5_u

SDMMC0 andmeport

3,3 V

I/O UP

10

SDMMC0_CMD

SDMMC0_CMD/PWM10_M1/UART5_RX_M0/CAN0_TX_M1/GPIO2_A1_u

SDMMC0 käsu väljund

3,3 V

I/O UP

11

SDMMC0_CLK

SDMMC0_CLK/TEST_CLKOUT/UART5_TX_M0/CAN0_RX_M1/GPIO2_A2_d

SDMMC0 kella väljund

3,3 V

I/O ALLA

12

RESETN

NPOR_U

Lähtestage signaali tuvastamine

3,3 V

-

13

RK809_PWRON

Toide sisse

Toitesignaali sisend, välise ühenduse toiteklahv, aktiivne madal

-

14

TAASTAMINE

SARADC_VIN0

AD-klaviatuuri sisend

1,8 V

-

15

EXT_EN

EXT_EN

PMIC toite lubamine

-

16

HPR_OUT

HPR_OUT

Kõrvaklapid kohe väljas

3,3 V

-

17

HPL_OUT

HPL_OUT

Kõrvaklapid jäetud välja

3,3 V

-

18

SPKP_OUT

SPKP_OUT

Avameelselt rääkima

5V/0,6W

-

19

SPKN_OUT

SPKN_OUT

Avameelselt rääkima-

5V/0,6W

-

20

MIC1_INN

MIC1_INN/MIC_R

MIC1_INN

3,3 V

-

21

MIC1_INP

MIC1_INP/MIC_L

MIC1_INP

3,3 V

-

22

HP_DET_L_GPIO3_C2

LCDC_VSYNC/VOP_BT1120_D14/SPI1_MISO_M1/UART5_TX_M1/I2S1_SDO3_M2/GPIO3_C2_d

Kõrvaklappide tuvastamine

3,3 V

I/O ALLA

23

SPK_CTL_H_GPIO3_C3

LCDC_DEN/VOP_BT1120_D15/SPI1_CLK_M1/UART5_RX_M1/I2S1_SCLK_RX_M2/GPIO3_C3_d

3,3 V

I/O ALLA

24

VCC3V3_SD

3,3 V toiteallikas

Väljundpinge 3,3 V SD-kaardi jaoks, nimiväljundvool 2A

-

25

VCC_3V3

3,3 V toiteallikas

Väljundpinge 3,3V, Nimiväljundvool 2A

-

26

VCC_1V8

1,8 V toiteallikas

Väljundpinge 1,8V, nimiväljundvool 2,5A

-

27

PDM_SDI1_M0_ADC

I2S1_SDO3_M0/I2S1_SDI1_M0/PDM_SDI1_M0/PCIE20_PERSTn_M2/GPIO1_B2_d

PDM_SDI1_M0_ADC

3,3 V

IO ALLA

28

PDM_SDI2_M0_ADC

I2S1_SDO2_M0/I2S1_SDI2_M0/PDM_SDI2_M0/PCIE20_WAKEn_M2/ACODEC_ADC_SYNC/GPIO1_B1_d

PDM_SDI2_M0_ADC

3,3 V

IO ALLA

29

PDM_SDI3_M0_ADC

I2S1_SDO1_M0/I2S1_SDI3_M0/PDM_SDI3_M0/PCIE20_CLKREQn_M2/ACODEC_DAC_DATAR/GPIO1_B0_d

PDM_SDI3_M0_ADC

3,3 V

IO ALLA

30

PDM_CLK1_M0_ADC

I2S1_SCLK_RX_M0/UART4_RX_M0/PDM_CLK1_M0/SPDIF_TX_M0/GPIO1_A4_d

PDM_CLK1_M0_ADC

3,3 V

IO ALLA

31

GMAC0_TXD0

GMAC0_TXD0/UART1_RX_M0/GPIO2_B3_u

GMAC0 edastab andmeid

1,8 V

I/O UP

32

GMAC0_TXD1

GMAC0_TXD1/UART1_TX_M0/GPIO2_B4_u

GMAC0 edastab andmeid

1,8 V

I/O UP

33

GMAC0_TXD2

SDMMC1_D3/GMAC0_TXD2/UART7_TX_M0/GPIO2_A6_u

GMAC0 edastab andmeid

1,8 V

I/O UP

34

GMAC0_TXD3

SDMMC1_CMD/GMAC0_TXD3/UART9_RX_M0/GPIO2_A7_u

GMAC0 edastab andmeid

1,8 V

I/O UP

35

GMAC0_TXEN

GMAC0_TXEN/UART1_RTSn_M0/SPI1_CLK_M0/GPIO2_B5_u

GMAC0 edastuse lubamine

1,8 V

I/O UP

36

GMAC0_TXCLK

SDMMC1_CLK/GMAC0_TXCLK/UART9_TX_M0/GPIO2_B0_d

GMAC0 saatekell

1,8 V

I/O ALLA

37

GMAC0_RXD0

GMAC0_RXD0/UART1_CTSn_M0/SPI1_MISO_M0/GPIO2_B6_u

GMAC0 saada andmeid

1,8 V

I/O UP

38

GMAC0_RXD1

I2S2_SCLK_RX_M0/GMAC0_RXD1/UART6_RTSn_M0/SPI1_MOSI_M0/GPIO2_B7_d

GMAC0 saada andmeid

1,8 V

I/O ALLA

39

GMAC0_RXD2

SDMMC1_D0/GMAC0_RXD2/UART6_RX_M0/GPIO2_A3_u

GMAC0 saada andmeid

1,8 V

I/O UP

40

GMAC0_RXD3

SDMMC1_D1/GMAC0_RXD3/UART6_TX_M0/GPIO2_A4_u

GMAC0 saada andmeid

1,8 V

I/O UP

41

GMAC0_RXDV_CRS

I2S2_LRCK_RX_M0/GMAC0_RXDV_CRS/UART6_CTSn_M0/SPI1_CS0_M0/GPIO2_C0_d

GMAC0 RX andmete kehtiv signaal

1,8 V

I/O ALLA

42

GMAC0_RXCLK

SDMMC1_D2/GMAC0_RXCLK/UART7_RX_M0/GPIO2_A5_u

GMAC0 vastuvõtukell

1,8 V

I/O UP

43

ETH0_REFCLKO_25M

I2S2_MCLK_M0/ETH0_REFCLKO_25M/UART7_RTSn_M0/SPI2_CLK_M0/GPIO2_C1_d

ETH0_REF CLOCK OUTPUT_25MHz CPU PHY, vaike-NC

1,8 V

I/O ALLA

44

GMAC0_MCLKINOUT

I2S2_SCLK_TX_M0/GMAC0_MCLKINOUT/UART7_CTSn_M0/SPI2_MISO_M0/GPIO2_C2_d

GMAC0 väline kell
sisend

1,8 V

I/O ALLA

45

GMAC0_MDC

I2S2_LRCK_TX_M0/GMAC0_MDC/UART9_RTSn_M0/SPI2_MOSI_M0/GPIO2_C3_d

MAC0 halduskell

1,8 V

I/O ALLA

46

GMAC0_MDIO

I2S2_SDO_M0/GMAC0_MDIO/UART9_CTSn_M0/SPI2_CS0_M0/GPIO2_C4_d

MAC0 halduskäsk ja andmed

1,8 V

I/O ALLA

47

GMAC0_RSTN_GPIO3_B7

LCDC_D21/VOP_BT1120_D12/GMAC1_TXD1_M0/I2C3_SDA_M1/PWM11_IR_M0/GPIO3_B6_d

3,3 V

IO ALLA

48

GMAC0_INT_PMEB_GPIO3_C0

LCDC_HSYNC/VOP_BT1120_D13/SPI1_MOSI_M1/PCIE20_PERSTn_M1/I2S1_SDO2_M2/GPIO3_C1_d

3,3 V

I/O ALLA

49

RTCTC_INT_L_GPIO0_D3

GPIO0_D3_d

RTC_IC_INT, aktiivne madal

1,8 V

I/O ALLA

50

I2C5_SDA_M0

LCDC_D19/VOP_BT1120_D10/GMAC1_RXER_M0/I2C5_SDA_M0/PDM_SDI1_M2/GPIO3_B4_d

I2C jadaport 5

3,3 V

I/O ALLA

51

I2C5_SCL_M0

LCDC_D18/VOP_BT1120_D9/GMAC1_RXDV_CRS_M0/I2C5_SCL_M0/PDM_SDI0_M2/GPIO3_B3_d

I2C jadaport 5

3,3 V

I/O ALLA

52

PWM3_IR

PWM3_IR/EDP_HPDIN_M1/PCIE30X1_WAKEn_M0/MCU_JTAG_TMS/GPIO0_C2_d

3,3 V

I/O ALLA

53

CAN1_TX_M1

PWM15_IR_M1/SPI3_MOSI_M1/CAN1_TX_M1/PCIE30X2_WAKEn_M2/I2S3_SCLK_M1/GPIO4_C3_d

CAN-andmete edastamine

3,3 V

I/O ALLA

54

CAN1_RX_M1

PWM14_M1/SPI3_CLK_M1/CAN1_RX_M1/PCIE30X2_CLKREQn_M2/I2S3_MCLK_M1/GPIO4_C2_d

CAN andmete vastuvõtt

3,3 V

I/O ALLA

55

UART2_RX_M0_DEBUG

UART2_RX_M0/GPIO0_D0_u

UART jadaport

3,3 V

I/O UP

56

UART2_TX_M0_DEBUG

UART2_TX_M0/GPIO0_D1_u

UART-jadapordi andmete edastamine silumiseks

3,3 V

I/O UP

57

UART3_RX_M1

LCDC_D23/PWM13_M0/GMAC1_MCLKINOUT_M0/UART3_RX_M1/PDM_SDI3_M2/GPIO3_C0_d

UART jadapordi andmete vastuvõtt

3,3 V

I/O ALLA

58

UART3_TX_M1

LCDC_D22/PWM12_M0/GMAC1_TXEN_M0/UART3_TX_M1/PDM_SDI2_M2/GPIO3_B7_d

UART jadapordi andmete edastamine

3,3 V

I/O ALLA

59

UART4_TX_M1

LCDC_D17/VOP_BT1120_D8/GMAC1_RXD1_M0/UART4_TX_M1/PWM9_M0/GPIO3_B2_d

UART jadapordi andmete edastamine

3,3 V

I/O ALLA

60

UART4_RX_M1

LCDC_D16/VOP_BT1120_D7/GMAC1_RXD0_M0/UART4_RX_M1/PWM8_M0/GPIO3_B1_d

UART jadapordi andmete vastuvõtt

3,3 V

I/O ALLA

61

UART9_RX_M1

PWM13_M1/SPI3_CS0_M1/SATA0_ACT_LED/UART9_RX_M1/I2S3_SDI_M1/GPIO4_C6_d

UART jadapordi andmete vastuvõtt

3,3 V

I/O ALLA

62

UART9_TX_M1

PWM12_M1/SPI3_MISO_M1/SATA1_ACT_LED/UART9_TX_M1/I2S3_SDO_M1/GPIO4_C5_d

UART jadapordi andmete edastamine

3,3 V

I/O ALLA

63

UART7_RX_M1

PWM15_IR_M0/SPDIF_TX_M1/GMAC1_MDIO_M0/UART7_RX_M1/I2S1_LRCK_RX_M2/GPIO3_C5_d

UART jadapordi andmete vastuvõtt

3,3 V

I/O ALLA

64

UART7_TX_M1

PWM14_M0/VOP_PWM_M1/GMAC1_MDC_M0/UART7_TX_M1/PDM_CLK1_M2/GPIO3_C4_d

UART jadapordi andmete edastamine

3,3 V

I/O ALLA

65

RS485_DIR_GPIO3_B5

LCDC_D20/VOP_BT1120_D11/GMAC1_TXD0_M0/I2C3_SCL_M1/PWM10_M0/GPIO3_B5_d

RS485 andmesuund

3,3 V

I/O ALLA

66

DVP_PWREN0_H_GPIO0_B0

CLK32K_IN/CLK32K_OUT0/PCIE30X2_BUTTONRSTn/GPIO0_B0_u

3,3 V

I/O UP

67

WIFI_PWREN_L_GPIO0_C1

PWM2_M0/NPUAVS/UART0_TX/MCU_JTAG_TDI/GPIO0_C1_d

3,3 V

I/O ALLA

68

I2S3_SDI_M0

LCDC_D13/VOP_BT1120_CLK/GMAC1_TXCLK_M0/I2S3_SDI_M0/SDMMC2_CLK_M1/GPIO3_A6_d

I2S3_SDI

3,3 V

I/O ALLA

69

I2S3_SDO_M0

LCDC_D12/VOP_BT1120_D4/GMAC1_RXD3_M0/I2S3_SDO_M0/SDMMC2_CMD_M1/GPIO3_A5_d

I2S3_SDO

3,3 V

I/O ALLA

70

I2S3_LRCK_M0

LCDC_D11/VOP_BT1120_D3/GMAC1_RXD2_M0/I2S3_LRCK_M0/SDMMC2_D3_M1/GPIO3_A4_d

I2S3_LRCK

3,3 V

I/O ALLA

71

I2S3_SCLK_M0

LCDC_D10/VOP_BT1120_D2/GMAC1_TXD3_M0/I2S3_SCLK_M0/SDMMC2_D2_M1/GPIO3_A3_d

I2S3_SCLK

3,3 V

I/O ALLA

72

HOST_WAKE_BT_H_GPIO3_A2

LCDC_D9/VOP_BT1120_D1/GMAC1_TXD2_M0/I2S3_MCLK_M0/SDMMC2_D1_M1/GPIO3_A2_d

HOST_WAKE_BT

3,3 V

I/O ALLA

73

BT_WAKE_HOST_H_GPIO3_A1

LCDC_D8/VOP_BT1120_D0/SPI1_CS0_M1/PCIE30X1_PERSTn_M1/SDMMC2_D0_M1/GPIO3_A1_d

BT_WAKE_HOST

3,3 V

I/O ALLA

74

BT_REG_ON_H_GPIO3_A0

LCDC_CLK/VOP_BT656_CLK_M0/SPI2_CLK_M1/UART8_RX_M1/I2S1_SDO1_M2/GPIO3_A0_d

Bluetoothi ​​mooduli toite lubamine

3,3 V

I/O ALLA

75

UART8_RX_M0

CLK32K_OUT1/UART8_RX_M0/SPI1_CS1_M0/GPIO2_C6_d

UART jadapordi andmete vastuvõtt

1,8V

I/O ALLA

76

UART8_TX_M0

I2S2_SDI_M0/GMAC0_RXER/UART8_TX_M0/SPI2_CS1_M0/GPIO2_C5_d

UART jadapordi andmete edastamine

1,8 V

I/O ALLA

77

UART8_CTSN_M0

SDMMC1_DET/I2C4_SCL_M1/UART8_CTSn_M0/CAN2_TX_M1/GPIO2_B2_u

UART8_CTSn_M0

1,8 V

I/O ALLA

78

UART8_RTSN_M0

SDMMC1_PWREN/I2C4_SDA_M1/UART8_RTSn_M0/CAN2_RX_M1/GPIO2_B1_d

UART8_RTSn_M0

1,8 V

I/O ALLA

79

WIFI_REG_ON_H_GPIO3_D5

CIF_D7/EBC_SDDO7/SDMMC2_PWREN_M0/I2S1_SDI3_M1/VOP_BT656_D7_M1/GPIO3_D5_d

WIFI_REG luba

1,8 V

I/O ALLA

80

WIFI_WAKE_HOST_H_GPIO3_D4

CIF_D6/EBC_SDDO6/SDMMC2_DET_M0/I2S1_SDI2_M1/VOP_BT656_D6_M1/GPIO3_D4_d

WIFI ärkamisjuht

1,8 V

I/O ALLA

81

SDMMC2_CLK_M0

CIF_D5/EBC_SDDO5/SDMMC2_CLK_M0/I2S1_SDI1_M1/VOP_BT656_D5_M1/GPIO3_D3_d

SDMMC2 kell

1,8 V

I/O ALLA

82

SDMMC2_CMD_M0

CIF_D4/EBC_SDDO4/SDMMC2_CMD_M0/I2S1_SDI0_M1/VOP_BT656_D4_M1/GPIO3_D2_d

SDMMC2 käsk

1,8 V

I/O ALLA

83

SDMMC2_D3_M0

CIF_D3/EBC_SDDO3/SDMMC2_D3_M0/I2S1_SDO0_M1/VOP_BT656_D3_M1/GPIO3_D1_d

SDMMC2 andmed

1,8 V

I/O ALLA

84

SDMMC2_D2_M0

CIF_D2/EBC_SDDO2/SDMMC2_D2_M0/I2S1_LRCK_TX_M1/VOP_BT656_D2_M1/GPIO3_D0_d

SDMMC2 andmed

1,8 V

I/O ALLA

85

SDMMC2_D1_M0

CIF_D1/EBC_SDDO1/SDMMC2_D1_M0/I2S1_SCLK_TX_M1/VOP_BT656_D1_M1/GPIO3_C7_d

SDMMC2 andmed

1,8 V

I/O ALLA

86

SDMMC2_D0_M0

CIF_D0/EBC_SDDO0/SDMMC2_D0_M0/I2S1_MCLK_M1/VOP_BT656_D0_M1/GPIO3_C6_d

SDMMC2 andmed

1,8 V

I/O ALLA

87

GMAC1_INT/PMEB_GPIO3_A7

LCDC_D14/VOP_BT1120_D5/GMAC1_RXCLK_M0/SDMMC2_DET_M1/GPIO3_A7_d

3,3 V

I/O ALLA

88

GMAC1_RSTN_GPIO3_B0

LCDC_D15/VOP_BT1120_D6/ETH1_REFCLKO_25M_M0/SDMMC2_PWREN_M1/GPIO3_B0_d

3,3 V

I/O ALLA

89

GMAC1_MDIO_M1

IF_VSYNC/EBC_SDOE/GMAC1_MDIO_M1/I2S2_SCLK_TX_M1/GPIO4_B7_d

GMAC1 halduskäsk ja andmed

1,8 V

I/O ALLA

90

GMAC1_MDC_M1

CIF_HREF/EBC_SDLE/GMAC1_MDC_M1/UART1_RTSn_M1/I2S2_MCLK_M1/GPIO4_B6_d

GMAC1 halduskell

1,8 V

I/O ALLA

91

GMAC1_MCLKINOUT_M1

CIF_CLKIN/EBC_SDCLK/GMAC1_MCLKINOUT_M1/UART1_CTSn_M1/I2S2_SCLK_RX_M1/GPIO4_C1_d

GMAC1 väline kell
sisend

1,8 V

I/O ALLA

92

ETH1_REFCLKO_25M_M1

I2C4_SCL_M0/EBC_GDOE/ETH1_REFCLKO_25M_M1/SPI3_CLK_M0/I2S2_SDO_M1/GPIO4_B3_d

ETH1 Kella väljund

1,8 V

I/O ALLA

93

GMAC1_RXCLK_M1

CIF_D13/EBC_SDDO13/GMAC1_RXCLK_M1/UART7_RX_M2/PDM_SDI3_M1/GPIO4_A3_d

GMAC1 vastuvõtukell

1,8 V

I/O ALLA

94

GMAC1_RXDV_CRS_M1

ISP_PRELIGHT_TRIG/EBC_SDCE3/GMAC1_RXDV_CRS_M1/I2S1_SDO2_M1/GPIO4_B1_d

GMAC1 RX andmete kehtiv signaal

1,8 V

I/O ALLA

95

GMAC1_RXD3_M1

CIF_D12/EBC_SDDO12/GMAC1_RXD3_M1/UART7_TX_M2/PDM_SDI2_M1/GPIO4_A2_d

GMAC1 saada andmeid

1,8 V

I/O ALLA

96

GMAC1_RXD2_M1

CIF_D11/EBC_SDDO11/GMAC1_RXD2_M1/PDM_SDI1_M1/GPIO4_A1_d

GMAC1 saada andmeid

1,8 V

I/O ALLA

97

GMAC1_RXD1_M1

CAM_CLKOUT1/EBC_SDCE2/GMAC1_RXD1_M1/SPI3_MISO_M0/I2S1_SDO1_M1/GPIO4_B0_d

GMAC1 saada andmeid

1,8 V

I/O ALLA

98

GMAC1_RXD0_M1

CAM_CLKOUT0/EBC_SDCE1/GMAC1_RXD0_M1/SPI3_CS1_M0/I2S1_LRCK_RX_M1/GPIO4_A7_d

GMAC1 saada andmeid

1,8 V

I/O ALLA

99

GMAC1_TXCLK_M1

CIF_D10/EBC_SDDO10/GMAC1_TXCLK_M1/PDM_CLK1_M1/GPIO4_A0_d

GMAC1 saatekell

1,8 V

I/O ALLA

100

GMAC1_TXEN_M1

ISP_FLASHTRIGOUT/EBC_SDCE0/GMAC1_TXEN_M1/SPI3_CS0_M0/I2S1_SCLK_RX_M1/GPIO4_A6_d

GMAC1 edastuse lubamine

1,8 V

I/O ALLA

101

GMAC1_TXD3_M1

CIF_D9/EBC_SDDO9/GMAC1_TXD3_M1/UART1_RX_M1/PDM_SDI0_M1/GPIO3_D7_d

GMAC1 edastab andmeid

1,8 V

I/O ALLA

102

GMAC1_TXD2_M1

CIF_D8/EBC_SDDO8/GMAC1_TXD2_M1/UART1_TX_M1/PDM_CLK0_M1/GPIO3_D6_d

GMAC1 edastab andmeid

1,8 V

I/O ALLA

103

GMAC1_TXD1_M1

CIF_D15/EBC_SDDO15/GMAC1_TXD1_M1/UART9_RX_M2/I2S2_LRCK_RX_M1/GPIO4_A5_d

GMAC1 edastab andmeid

1,8 V

I/O ALLA

104

GMAC1_TXD0_M1

CIF_D14/EBC_SDDO14/GMAC1_TXD0_M1/UART9_TX_M2/I2S2_LRCK_TX_M1/GPIO4_A4_d

GMAC1 edastab andmeid

1,8 V

I/O ALLA

105

TP_RST_L_GPIO0_B6

I2C2_SDA_M0/SPI0_MOSI_M0/PCIE20_PERSTn_M0/PWM2_M1/GPIO0_B6_u

Puutepaneeli lähtestamine

3,3 V

I/O UP

106

TP_INT_L_GPIO0_B5

I2C2_SCL_M0/SPI0_CLK_M0/PCIE20_WAKEn_M0/PWM1_M1/GPIO0_B5_u

Puutepaneeli andmesisestuse katkestamine

3,3 V

I/O UP

107

I2C1_SDA_TP

I2C1_SDA/CAN0_RX_M0/PCIE20_BUTTONRSTn/MCU_JTAG_TCK/GPIO0_B4_u

I2C jadaport 1

3,3 V

I/O UP

108

I2C1_SCL_TP

I2C1_SCL/CAN0_TX_M0/PCIE30X1_BUTTONRSTn/MCU_JTAG_TDO/GPIO0_B3_u

I2C jadaport 1

3,3 V

I/O UP

109

I2C3_SCL_M0

I2C3_SCL_M0/UART3_TX_M0/CAN1_TX_M0/AUDIOPWM_LOUT_N/ACODEC_ADC_CLK/GPIO1_A1_u

I2C jadaport 3

3,3 V

I/O UP

110

I2C3_SDA_M0

I2C3_SDA_M0/UART3_RX_M0/CAN1_RX_M0/AUDIOPWM_LOUT_P/ACODEC_ADC_DATA/GPIO1_A0_u

I2C jadaport 3

3,3 V

I/O UP

111

I2C2_SCL_M1

I2C2_SCL_M1/EBC_SDSHR/CAN2_TX_M0/I2S1_SDO3_M1/GPIO4_B5_d

I2C jadaport 2

1,8 V

I/O ALLA

112

I2C2_SDA_M1

I2C2_SDA_M1/EBC_GDSP/CAN2_RX_M0/ISP_FLASH_TRIGIN/VOP_BT656_CLK_M1/GPIO4_B4_d

I2C jadaport 2

1,8 V

I/O ALLA

113

MIPI_CAM1_PDN_L_GPIO3_D3

LCDC_D1/VOP_BT656_D1_M0/SPI0_MOSI_M1/PCIE20_WAKEn_M1/I2S1_SCLK_TX_M2/GPIO2_D1_d

Kaamera 1 väljalülitamine

3,3 V

I/O ALLA

114

MIPI_CAM1_RST_L_GPIO3_D2

LCDC_D0/VOP_BT656_D0_M0/SPI0_MISO_M1/PCIE20_CLKREQn_M1/I2S1_MCLK_M2/GPIO2_D0_d

Kaamera1 lähtestamine

3,3 V

I/O ALLA

115

MIPI_CAM0_RST_L_GPIO3_D4

LCDC_D2/VOP_BT656_D2_M0/SPI0_CS0_M1/PCIE30X1_CLKREQn_M1/I2S1_LRCK_TX_M2/GPIO2_D2_d

Kaamera0 lähtestamine

3,3 V

I/O ALLA

116

MIPI_CAM0_PDN_L_GPIO3_D5

LCDC_D3/VOP_BT656_D3_M0/SPI0_CLK_M1/PCIE30X1_WAKEn_M1/I2S1_SDI0_M2/GPIO2_D3_d

Kaamera0 väljalülitamine

3,3 V

I/O ALLA

117

USB2_HOST2_DM

USB2_HOST2_DM

USB2_HOST2_DM

3,3 V

-

118

USB2_HOST2_DP

USB2_HOST2_DP

USB2_HOST2_DP

3,3 V

-

119

USB2_HOST3_DM

USB2_HOST3_DM

USB2_HOST3_DM

3,3 V

-

120

USB2_HOST3_DP

USB2_HOST3_DP

USB2_HOST3_DP

3,3 V

-

121

REFCLK_OUT

REFCLK_OUT/GPIO0_A0_d

Kaamera kella väljund

3,3 V

I/O ALLA

122

CIF_CLKOUT

CIF_CLKOUT/EBC_GDCLK/PWM11_IR_M1/GPIO4_C0_d

CIF-kell läbi

1,8 V

I/O ALLA

123

MIPI_CSI_RX_D3P

MIPI_CSI_RX_D3P

MIPI_CSI_RX_D3P

1,8 V

-

124

MIPI_CSI_RX_D3N

MIPI_CSI_RX_D3N

MIPI_CSI_RX_D3N

1,8 V

-

125

MIPI_CSI_RX_D2P

MIPI_CSI_RX_D2P

MIPI_CSI_RX_D2P

1,8 V

-

126

MIPI_CSI_RX_D2N

MIPI_CSI_RX_D2N

MIPI_CSI_RX_D2N

1,8 V

-

127

MIPI_CSI_RX_CLK1P

MIPI_CSI_RX_CLK1P

MIPI_CSI_RX_CLK1P

1,8 V

-

128

MIPI_CSI_RX_CLK1N

MIPI_CSI_RX_CLK1N

MIPI_CSI_RX_CLK1N

1,8 V

-

129

MIPI_CSI_RX_CLK0P

MIPI_CSI_RX_CLK0P

MIPI_CSI_RX_CLK0P

1,8 V

-

130

MIPI_CSI_RX_CLK0N

MIPI_CSI_RX_CLK0N

MIPI_CSI_RX_CLK0N

1,8 V

-

131

MIPI_CSI_RX_D1P

MIPI_CSI_RX_D1P

MIPI_CSI_RX_D1P

1,8 V

-

132

MIPI_CSI_RX_D1N

MIPI_CSI_RX_D1N

MIPI_CSI_RX_D1N

1,8 V

-

133

MIPI_CSI_RX_D0P

MIPI_CSI_RX_D0P

MIPI_CSI_RX_D0P

1,8 V

-

134

MIPI_CSI_RX_D0N

MIPI_CSI_RX_D0N

MIPI_CSI_RX_D0N

1,8 V

-

135

LCD1_PWREN_H_GPIO0_C5

PWM6/SPI0_MISO_M0/PCIE30X2_WAKEn_M0/GPIO0_C5_d

LCD toite lubamine

3,3 V

I/O ALLA

136

LCD1_BL_PWM5

PWM5/SPI0_CS1_M0/UART0_RTSn/GPIO0_C4_d

LCD taustvalgustus PWM

3,3 V

I/O ALLA

137

LCD1_BL_PWM4

PWM4/VOP_PWM_M0/PCIE30X1_PERSTn_M0/MCU_JTAG_TRSTn/GPIO0_C3_d

LCD taustvalgustus PWM

3,3 V

I/O ALLA

138

LCD0_PWREN_H_GPIO0_C7

HDMITX_CEC_M1/PWM0_M1/UART0_CTSn/GPIO0_C7_d

LCD toite lubamine

3,3 V

I/O ALLA

139

MIPI_DSI_TX0_D3P/LVDS_TX0_D3P

MIPI_DSI_TX0_D3P/LVDS_TX0_D3P

MIPI_DSI_TX0_D3P/LVDS_TX0_D3P

1,8 V

-

140

MIPI_DSI_TX0_D3P/LVDS_TX0_D3N

MIPI_DSI_TX0_D3P/LVDS_TX0_D3N

MIPI_DSI_TX0_D3P/LVDS_TX0_D3N

1,8 V

-

141

MIPI_DSI_TX0_D3P/LVDS_TX0_D2P

MIPI_DSI_TX0_D3P/LVDS_TX0_D2P

MIPI_DSI_TX0_D3P/LVDS_TX0_D2P

1,8 V

-

142

MIPI_DSI_TX0_D3P/LVDS_TX0_D2N

MIPI_DSI_TX0_D3P/LVDS_TX0_D2N

MIPI_DSI_TX0_D3P/LVDS_TX0_D2N

1,8 V

-

143

MIPI_DSI_TX0_D3P/LVDS_TX0_CLKP

MIPI_DSI_TX0_D3P/LVDS_TX0_CLKP

MIPI_DSI_TX0_D3P/LVDS_TX0_CLKP

1,8 V

-

144

MIPI_DSI_TX0_D3P/LVDS_TX0_CLKN

MIPI_DSI_TX0_D3P/LVDS_TX0_CLKN

MIPI_DSI_TX0_D3P/LVDS_TX0_CLKN

1,8 V

-

145

MIPI_DSI_TX0_D3P/LVDS_TX0_D1P

MIPI_DSI_TX0_D3P/LVDS_TX0_D1P

MIPI_DSI_TX0_D3P/LVDS_TX0_D1P

1,8 V

-

146

MIPI_DSI_TX0_D3P/LVDS_TX0_D1N

MIPI_DSI_TX0_D3P/LVDS_TX0_D1N

MIPI_DSI_TX0_D3P/LVDS_TX0_D1N

1,8 V

-

147

MIPI_DSI_TX0_D3P/LVDS_TX0_D0P

MIPI_DSI_TX0_D3P/LVDS_TX0_D0P

MIPI_DSI_TX0_D3P/LVDS_TX0_D0P

1,8 V

-

148

MIPI_DSI_TX0_D3P/LVDS_TX0_D0N

MIPI_DSI_TX0_D3P/LVDS_TX0_D0N

MIPI_DSI_TX0_D3P/LVDS_TX0_D0N

1,8 V

-

149

HDMI_TXCLKN_PORT

HDMI_TX_CLKN

HDMI_TX2CLKN_PORT ja seeriatakistus 2,2R

1,8 V

-

150

HDMI_TXCLKP_PORT

HDMI_TX_CLKP

HDMI_TXCLKP_PORT ja seeriatakistus 2,2R

1,8 V

-

151

HDMI_TX0N_PORT

HDMI_TX_D0N

HDMI_TX0N_PORT ja seeriatakistus 2,2R

1,8 V

-

152

HDMI_TX0P_PORT

HDMI_TX_D0P

HDMI_TX0P_PORT ja seeriatakistus 2,2R

1,8 V

-

153

HDMI_TX1N_PORT

HDMI_TX_D1N

HDMI_TX1N_PORT ja seeriatakistus 2,2R

1,8 V

-

154

HDMI_TX1P_PORT

HDMI_TX_D1P

HDMI_TX1P_PORT ja seeriatakistus 2,2R

1,8 V

-

155

HDMI_TX2N_PORT

HDMI_TX_D2N

HDMI_TX2N_PORT ja seeriatakistus 2,2R

1,8 V

-

156

HDMI_TX2P_PORT

HDMI_TX_D2P

HDMI_TX2P_PORT ja seeriatakistus 2,2R

1,8 V

-

157

HDMITX_SCL

HDMITX_SCL/I2C5_SCL_M1/GPIO4_C7_u

I2C jadaport HDMI jaoks

3,3 V

I/O UP

158

HDMITC_SDA

HDMITX_SDA/I2C5_SDA_M1/GPIO4_D0_u

I2C jadaport HDMI jaoks

3,3 V

I/O UP

159

HDMITX_CEC_M0

HDMITX_CEC_M0/SPI3_CS1_M1/GPIO4_D1_u

HDMITX_CEC

3,3 V

I/O UP

160

HDMI_TX_HPDIN

HDMI_TX_HPDIN

HDMI_TX kuum pistik

1,8 V

-

161

PCIE30X2_CLKREQN_M1

LCDC_D4/VOP_BT656_D4_M0/SPI2_CS1_M1/PCIE30X2_CLKREQn_M1/I2S1_SDI1_M2/GPIO2_D4_d

PCIE30X2_CLKREQn

3.3

I/O ALLA

162

PCIE30X2_WAKEN_M1

LCDC_D5/VOP_BT656_D5_M0/SPI2_CS0_M1/PCIE30X2_WAKEn_M1/I2S1_SDI2_M2/GPIO2_D5_d

PCIE30X2_WAKEn

3,3 V

I/O ALLA

163

PCIE30X2_PERSTN_M1

LCDC_D6/VOP_BT656_D6_M0/SPI2_MOSI_M1/PCIE30X2_PERSTn_M1/I2S1_SDI3_M2/GPIO2_D6_d

PCIE30X2 lähtestamine

3,3 V

I/O ALLA

164

PCIE30X2_PRSNT_L_GPIO2_D7

LCDC_D7/VOP_BT656_D7_M0/SPI2_MISO_M1/UART8_TX_M1/I2S1_SDO0_M2/GPIO2_D7_d

PCIE30X2 ärata host

3,3 V

I/O ALLA

165

PCIE_PWREN_H_GPIO0_D4

GPIO0_D4_d

PCIE toite lubamine

1,8 V

I/O ALLA

166

PCIE30_RX1N

PCIE30_RX1N

PCIE30_RX1N

1,8 V

-

167

PCIE30_RX1P

PCIE30_RX1P

PCIE30_RX1P

1,8 V

-

168

PCIE30_RX0N

PCIE30_RX0N

PCIE30_RX0N

1,8 V

-

169

PCIE30_RX0P

PCIE30_RX0P

PCIE30_RX0P

1,8 V

-

170

PCIE30_TX1N

PCIE30_TX1N

PCIE30_TX1N

1,8 V

-

171

PCIE30_TX1P

PCIE30_TX1P

PCIE30_TX1P

1,8 V

-

172

PCIE30_TX0N

PCIE30_TX0N

PCIE30_TX0N

1,8 V

-

173

PCIE30_TX0P

PCIE30_TX0P

PCIE30_TX0P

1,8 V

-

174

PCIE30_REFCLKN_IN

PCIE30_REFCLKN_IN

PCIE30_REFCLKN_IN

1,8 V

-

175

PCIE30_REFCLKP_IN

PCIE30_REFCLKP_IN

PCIE30_REFCLKP_IN

1,8 V

-

176

PCIE20_REFCLKN

PCIE20_REFCLKN

PCIE20_REFCLKN

1,8 V

-

177

PCIE20_REFCLKP

PCIE20_REFCLKP

PCIE20_REFCLKP

1,8 V

-

178

SATA2_RXN

PCIE20_RXN/SATA2_RXN/QSGMII_RXN_M1

SATA2_RXN

1,8 V

-

179

SATA2_RXP

PCIE20_RXP/SATA2_RXP/QSGMII_RXP_M1

SATA2_RXP

1,8 V

-

180

SATA2_TXN

PCIE20_TXN/SATA2_TXN/QSGMII_TXN_M1

SATA2_TXN

1,8 V

-

181

SATA2_TXP

PCIE20_TXP/SATA2_TXP/QSGMII_TXP_M1

SATA2_TXP

1,8 V

-

182

SATA2_ACT_LED

EDP_HPDIN_M0/SPDIF_TX_M2/SATA2_ACT_LED/PCIE30X2_PERSTn_M2/I2S3_LRCK_M1/GPIO4_C4_d

SATA aktiivne näitab

3,3 V

I/O ALLA

183

USB3_HOST1_SSTXP

USB3_HOST1_SSTXP/SATA1_TXP/QSGMII_TXP_M0

USB3_HOST1_SSTXP

1,8 V

-

184

USB3_HOST1_SSTXN

USB3_HOST1_SSTXN/SATA1_TXN/QSGMII_TXN_M0

USB3_HOST1_SSTXN

1,8 V

-

185

USB3_HOST1_SSRXP

USB3_HOST1_SSRXP/SATA1_RXP/QSGMII_RXP_M0

USB3_HOST1_SSRXP

1,8 V

-

186

USB3_HOST1_SSRXN

USB3_HOST1_SSRXN/SATA1_RXN/QSGMII_RXN_M0

USB3_HOST1_SSRXN

1,8 V

-

187

USB3_HOST1_DM

USB3_HOST1_DM

USB3_HOST1_DM

3,3 V

-

188

USB3_HOST1_DP

USB3_HOST1_DP

USB3_HOST1_DP

3,3 V

-

189

USB3_OTG0_SSTXP

USB3_OTG0_SSTXP/SATA0_TXP

USB3_OTG0_SSTXP

1,8 V

-

190

USB3_OTG0_SSTXN

USB3_OTG0_SSTXN/SATA0_TXN

USB3_OTG0_SSTXN

1,8 V

-

191

USB3_OTG0_SSRXP

USB3_OTG0_SSRXP/SATA0_RXP

USB3_OTG0_SSRXP

1,8 V

-

192

USB3_OTG0_SSRXN

USB3_OTG0_SSRXN/SATA0_RXN

USB3_OTG0_SSRXN

1,8 V

-

193

USB3_OTG0_DM

USB3_OTG0_DM

USB3_OTG0_DM

3,3 V

-

194

USB3_OTG0_DP

USB3_OTG0_DP

USB3_OTG0_DP

3,3 V

-

195

USB3_OTG0_ID

USB3_OTG0_ID

USB3_OTG0_ID

3,3 V

-

196

USB3_OTG0_VBUSDET

USB3_OTG0_VBUSDET

USB3_OTG0_VBUS tuvastamine

3,3 V

-

197

USB_HOST_PWREN_H_GPIO0_A6

GPU_PWREN/SATA_CP_POD/PCIE30X2_CLKREQn_M0/GPIO0_A6_d

USB-hosti toite lubamine

3,3 V

I/O ALLA

198

USB_OTG_PWREN_H_GPIO0_A5

SDMMC0_PWREN/SATA_MP_SWITCH/PCIE20_CLKREQn_M0/GPIO0_A5_d

USB OTG toite lubamine

3,3 V

I/O ALLA

199

DSI_TX1_D3N/EDP_TX_D3N

MIPI_DSI_TX1_D3N/EDP_TX_D3N

MIPI_DSI_TX1_D3N/EDP_TX_D3N

1,8 V

-

200

DSI_TX1_D3P/EDP_TX_D3P

MIPI_DSI_TX1_D3P/EDP_TX_D3P

MIPI_DSI_TX1_D3P/EDP_TX_D3P

1,8 V

-

201

DSI_TX1_D2N/EDP_TX_D2N

MIPI_DSI_TX1_D2N/EDP_TX_D2N

MIPI_DSI_TX1_D2N/EDP_TX_D2N

1,8 V

-

202

DSI_TX1_D2P/EDP_TX_D2P

MIPI_DSI_TX1_D2P/EDP_TX_D2P

MIPI_DSI_TX1_D2P/EDP_TX_D2P

1,8 V

-

203

DSI_TX1_D1N/EDP_TX_D1N

MIPI_DSI_TX1_D1N/EDP_TX_D1N

MIPI_DSI_TX1_D1N/EDP_TX_D1N

1,8 V

-

204

DSI_TX1_D1P/EDP_TX_D1P

MIPI_DSI_TX1_D1P/EDP_TX_D1P

MIPI_DSI_TX1_D1P/EDP_TX_D1P

1,8 V

-

205

DSI_TX1_D0N/EDP_TX_D0N

MIPI_DSI_TX1_D0N/EDP_TX_D0N

MIPI_DSI_TX1_D0N/EDP_TX_D0N

1,8 V

-

206

DSI_TX1_D0P/EDP_TX_D0P

MIPI_DSI_TX1_D0P/EDP_TX_D0P

MIPI_DSI_TX1_D0P/EDP_TX_D0P

1,8 V

-

207

DSI_TX1_CLKN/EDP_TX_AUN

MIPI_DSI_TX1_CLKN/EDP_TX_AUN

MIPI_DSI_TX1_CLKN/EDP_TX_AUN

1,8 V

-

208

DSI_TX1_CLKP/EDP_TX_AUP

MIPI_DSI_TX1_CLKP/EDP_TX_AUP

MIPI_DSI_TX1_CLKP/EDP_TX_AUP

1,8 V

-

Liideste kirjeldus

EI.

Nimi

ã1ã

DC 12V sisend/4kontaktiline 2,54mm 12V sisend

ã2ã

4G mooduli SIM-kaardi pesa

ã3ã

TF-kaardi pesa

ã4ã

USB OTG

ã5ã

USB3.0 HOST

ã6ã

SATA andmed

ã7ã

HDMI väljund

ã8ã

MIPI LCD1

ã9ã

MIPI LCD0

ã10ã

MIPI kaamera

ã11ã

USB2.0 * 3

ã12ã

USB2.0 tüüpA

ã13ã

WIFI/BT (AP6335)

ã14ã

RTC

ã15ã

ETH0

ã16ã

ETH1

ã17ã

Värskenda võtit

ã18ã

Lähtestamisklahv

ã19ã

Toiteklahv

ã20ã

Võtmed (4 kontaktiga 2,0 mm)

ã21ã

CAN (3 kontaktiga 2,0 mm)

ã22ã

Uart TTL (4 kontaktiga 2,0 mm)

ã23ã

RS232 * 2 (4 kontaktiga 2,0 mm)

ã24ã

RS485 (4 kontaktiga 2,0 mm)

ã25ã

FAN (2 kontaktiga 2,0 mm)

ã26ã

MIC (2 kontakti 2,0 mm)

ã27ã

HP (2 kontaktiga 2,0 mm)

ã28ã

SPK (2 kontaktiga 2,0 mm)

ã29ã

Toide (4 kontaktiga 2,0 mm)

ã30ã

Silu Uart (4 kontaktiga 2,0 mm)

ã31ã

GPIO (2 * 10 kontaktiga 2,0 mm)

ã32ã

4G mooduli pesa (PCIE port)

ã33ã

RK3568 SOM
